This page contains summarized data analysis research information, including different memory variables decoded, the mechanisms of chart, day counter, timer and event counter of LSD: Dream Emulator.

Location ID numbers[]

These can be derived either from the textures (TIX files on cd) or from the memory by inspecting the current_location variables.

Location ID Location name Japanese
00 Bright Moon Cottage 明月荘
01 Pit & Temple 寺院
02 Kyoto 京都
03 The Natural World 自然界
04 Happy Town HAPPY TOWN
05 Violence District バイオレンス街
06 Moonlight Tower 月光の塔
07 Temple Dojo 寺道場
08 Flesh Tunnels 有機廊下
09 Clockwork Machines 工場
10 Long Hallway 長い廊下
11 Sun Faces Heave 太陽はヒーブ直面
12 Black Space ブラックスペース
13 Monument Park 記念碑公園

File Structure[]

Folders[]

The root of the disc contains a folder called CDI where all of the game data is stored. jPSXdec can open the CD image file, and another tool that can open .TIM and .TIX files is PSicture 1.02 on Windows 8.1 (64 bit). The .TIX format is unrecognized by PSicture, but the files can still be accessed if the file is scanned.

Folder
CARD The bulk of the user interface assets in TIM format
ETC Non-dream videos, fonts and images.
ASMKLOG

ASMKLOG.TIM File

FILM Dream videos and any "EVENT" videos triggered by interacting with the world such as the ferris wheel or the gear room

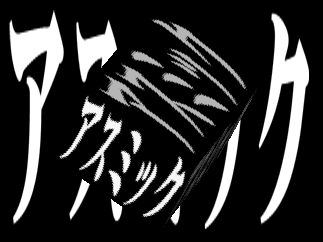

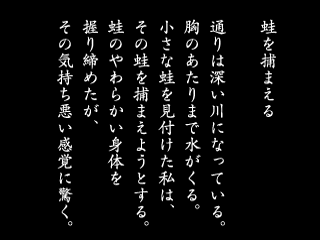

IMG1, IMG2 The pages of Kanji sometimes seen during the unplayable days
SPDAY01C 0000

SPDAY01C.TIM File

SND Sounds
STGxx A list of folders called STGxx, where xx is the Location ID. STG is likely a shortening of STAGE, as each STG folder appears to contain data for a specific room or area.

The game also has a ZDUMMY folder with a ZDUMMY.STR. This was created so that the game data was close to the center of the disc, making loading the game quicker.

ZDUMMY

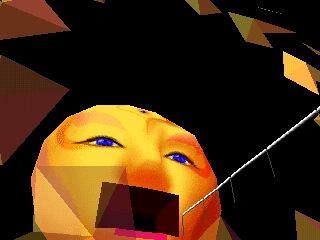

The image that appears if you play ZDUMMY.STR

TIX Files[]

There are four .TIX files for each location containing the four different texture themes. The textures stored within these files are in the .TIM format.

File name Texture theme
TEXA.TIX Normal
TEXB.TIX Kanji
TEXC.TIX Downer
TEXD.TIX Sexual

SEQ Files[]

Each STGxx folder has five BGx.SEQ files, ranging from A to E (BGA.SEQ to BGE.SEQ). The SEQ files contain sequenced music (the PSX MIDI equivalent) which can be used together with the VB (sample) and VH (header) files in /CDI/SND/ to compile the tracks. seq2mid can convert the SEQ files into MID files. pSound can extract the VB file content. The mixes can be compiled to PSF using vgmtoolbox which can then be played using Winamp with the in_psf plugin or using foobar with the foo_psf plugin.

These files always begin with a "magic number" of "pQES" followed by "1" as a big-endian value. While the PS1 was little-endian as far as this dreamer knows, the dream journal mentions using a Macintosh, which was big-endian, and the tools used to create these scripts were likely on a Mac as a result. 1 could refer to a version number. Note that pQES is SEQp which backs this up.

VB/VH Files[]

.VB contains a bank of sounds, always accompanied by a .VH header to describe what's inside. They are used for the in-game soundtrack's instrument sets (AMBIENT, CARTOON, etc.) and sound effects (SE). Awave Studio/VABTool can be used to open these files and access the individual .VAG sound effects inside each bank. Here's a key, as it's not immediately obvious at the default sample rate which VAG corresponds to which sounds in-game, and there is frequent reuse of sound effects for different purposes (ex. the astronaut and Happy Town trumpeters). Square brackets denote an unconfirmed or unknown sound.

VAG No.

Description
00000 [Jangling]
00001 [Opera Singer]
00002 [Jiggling]
00003 Grass, Sand, H.T. Footstep
00004 Train
00005 Astronaut, Trumpeters
00006 H.T. Squeak Footstep, Pterodactyl, Kissing Lips
00007 Flowing Water (Natural World)
00008 Link, Wind
00009 Minotaur Walk
00010 Deep Rumbling
00011 V.D. Dock Footstep, Kyoto Bell, Soda Cans
00012 Wooden Bridge Footstep, Balancing Child
00013 Tengu running
00014 Drumming (Kyoto)
00015 H.T. Footstep, Giant Baby Head Kanji Show
00016 Small Geisha Running
00017 V.D Girl Jump
00018 Snarl (Lions, Dojo Dog)
00019 Wings Flapping (Pterodactyl), H.T Bushes Swaying
00020 Click (Giant Head Enters The Window)
00021 Fetus Noise, Rocket Ship
00022 Breathing (Sleeper in BMC)
00023 BMC Birds Tweeting, Unknown Call in N.W
00024 Long Hallway Wall Open
00025 Horses Galloping (Natural World)
00026 UFOs
00027 Kyoto Grass Footstep
00028

Generic Footstep (Tunnels, V.D., BMC Tile, NW Rock)

00029 Water Footstep (NW River, Flesh Tunnels Slosh)

LBD Files[]

The .LBD files contain most of the models in the game. The models contained within these files are in .TMD format. They can be extracted with jPSXdec (uncheck raw) and further extracted with PSXMultiRip. Milkshape3D can import .TMD models which can be exported for editing in other modeling programs. LBD could also refer to Level Build Data.

In larger environments, these files are split into subfolders called Nx, which in the Natural World, for instance, span all the way from 1-9. The reasoning behind this is unclear, but perhaps it was just to keep the folder structure tidier. Maybe there were file system limitations or the map was split between developers.

Memory analysis[]

One way to understand the underlying game mechanics is to perform memory analysis on an emulator running the game. Once the analyst know about a variable, the variable itself can be monitored for studies. A variable can be modified directly by changing the memory of the emulator. The game's behavior can also be modified if the instructions are changed.

How to analyse the memory[]

Cheat engine is a program made for game memory modification. LSD: Dream Emulator running on the emulator pSXfin v1.13 was tested and worked well with Cheat engine. There is a .rar file containing a version of Cheat engine without the (potentially unwanted) OpenCandy on their official website download page. Be sure to read the guides available for free on various websites and to try Cheat engine with their demo tool before analyzing the game. Be sure to specify the memory region to scan from the address psxfin.exe+171A5C (2 MB game memory) and 0x200000 steps ahead instead of the entire emulator process memory (around 30 MB).

Step-by-step guide[]

Before starting Cheat engine, start the emulator application, load the CD image and start a new dream. Once you have run the Cheat engine main application, open the Process List window and select the emulator process.

Locating a day's variable:[]

Day110

Day 110

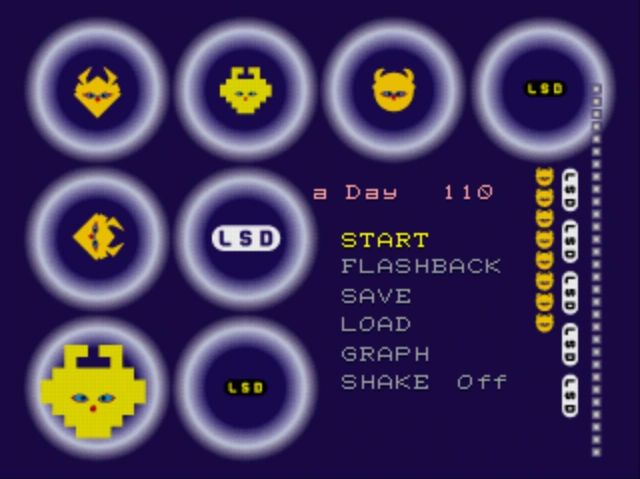

In this example, we will modify the number of days that have passed ingame. This game screen show us that we are on day 110. The game stores this as current_day = 109 with two different 4 Byte variables. Enter 110 - 1 = 109 as Value and press First Scan. Some variables that contains the value 109 will appear in the window to the left. Some of these are unrelated but simply happen to contain the value 109.

Play through a dream and the day will change - along with the dependent variables. Now enter the next current day Value 111 - 1 = 110 in Cheat engine and press Next Scan. This will filter out all variables that are not equal to 110. This is a good thing, as they are unrelated and unneeded.

110found

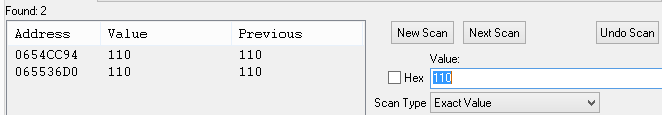

Two variables found

A finished scan should have two variables that are dependent as we already knew that there are exactly two variables that contains days - 1. These can now be monitored or modified. Try entering Flashback mode. The variables will change indicating which day the Flashback is from. Once yourFlashback dream is over, try changing both variables to a high value (more than 365). This has been speculated to trigger more frequent Gray Man visits.

Memory structure[]

There are some variables that control textures and some that are affected by The Gray Man if you get too close to him but those are complicated to map. Huge parts of the memory are modified when bouncing into something, linking and in encounters with The Gray Man.

Known variables[]

The offsets are measured from the beginning of the game memory. The variables are reached by adding the value found at psxfin.exe+171A5C. In Cheat engine, this is done by referring to psxfin.exe+171A5C as a pointer with the specified offset.

Day[]

There are two 4-byte integers that both contain day-1. These can be modified.

SLPS 015

CURRENT_DAY set to Day 999

Variable Speculated: current_day
Type 4 Bytes
Offset 916B0 & 8AC74 (2 copies)

Timer[]

You can get and set the amount of time you have spent on a location with this variable. It is stored close to the current_day variable. The timer seems to affect some dynamic links in some generations, which makes the link almost random. It also may relate to the last calculation of your final mood on the graph. In other cases, the timer will just count passed time to make some dynamic objects disappear / do something. Some memory locations nearby fluctuates a lot. This might suggest that the location is used for randomness. Modifying this does not influence gameplay directly. Timer counts spent time in special time units, where 20 time units = 1 second.

Repeatedly setting location_time and game_time to 0 before and during linking is known to cause a glitch similar to the glitch texture.

SLPS 015

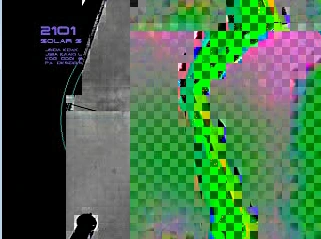

Map corrupted by setting timers to 0

Variable Speculated: location_time Speculated: game_time
Type 4 Bytes 4 Bytes
Offset 8AC70 90b74

Location[]

Each location has a unique ID which is the same one as files are indexed (including texture files). It is possible that setting the values to 4 (Happy Town) would trigger more The Gray Man visits and setting them to 0 (Bright Moon Cottage) would disable them. They are numbered by the order they change when linking. They keep the same value once linking is done. The value equals one of the location ID numbers. Invariant: 0 ≤ current_location ≤ 13. Changing them during a half-complete linking will corrupt maps and sometimes freeze the game. Changing just 8ABF8 will load just that map's object behaviors, producing strange results.

There is also a starting position variable that can be used to determine where on the location you will start. The value will change when walking the stairs in the Bright Moon Cottage where the four bytes tell you in which direction you walked and which floor (third byte) you are currently on. When exiting a tunnel, this value follows another pattern. If you save one of the correct pos_start values and enter them after linking, you will likely start at that position. It may also give you a strange starting positon.

SLPS 015

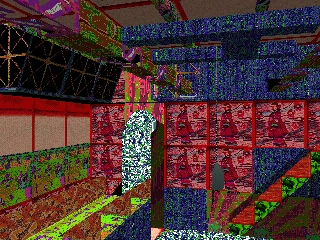

Map corrupted by garbling the location variables

Variable Speculated: current_location Speculated: pos_start
Type 4 Bytes 4 Bytes
Offset 91694, 8AC6C & 8ABF8 (3 copies) 9169c

Position[]

The x, y and z values are stored separately as signed integers. Modifying them teleports the player. There are some copies which are kept in sync with the main variables.

SLPS 015

Teleported to below the bridge

Variable Speculated: x Speculated: y Speculated: z
Type 4 Bytes signed 4 Bytes signed 4 Bytes signed
Offset

Main: 91e74

Copies: 91e94 (display),

91dd891df8

Main: 91e7c

Copies: 91e9c (display),

91de0 & 91e00

Main: 91e78

Copies: 91e98 (display),

91ddc & 91dfc

Chart[]

These variables are used when the chart and its marker is drawn on the screen. chart_draw_x and chart_draw_y are identical 4-byte versions of the mixed 4-byte copy containing chart_return_x and chart_return_y. This suggests that the latter two are taken from a return value. These variables are derived from chart chunk influence and chart object influence values described below, which are calculated using value addition and division.

The values are can be calculated as chart_draw_x = steps to the left(-) or the right(+) from the nose * 10 - 5. If we are 2 steps to the left, this gives us chart_draw_x = -25.

Variable Speculated: chart_draw_x Speculated: chart_draw_y Speculated: chart_return_x Speculated: chart_return_y
Type 4 Bytes signed 4 Bytes signed 2 Bytes signed 2 Bytes signed
Offset 94008 9400c 94014 94016
Chart Influence[]

There is a chunks trigger counter located in 91680 chunks_triggered variable. This increases by one when entering / loading map chunks. This value is used as a divisor in chart chunk influence calculation. Object triggers (animations) are counted separately using objects_triggered (offset 91690) which is a divisor for chart object influence calculation.

There is also a variable that holds the return value of the finished chunk load. The final two bytes (offsets 91674 and 91675) hold the signed values added to the chunk_x and chunk_y respectively - the additional chunk influence calculation value. These values are used to calculate the current chart chunk influence. Chart object influence is counted using object-related variables. The final chunk influence and object influence x and y values are then divided by 2, which output the current chart marker position.

Variable Speculated: chunks_triggered Speculated: chunk_return Speculated: object_animations_triggered
Type 4 Bytes 4 Bytes 4 Bytes
Offset 91680 91674 91690
Variable Speculated: chunk_x Speculated: chunk_y
Type 4 Bytes signed 4 Bytes signed
Offset 91678 9167c
Chart calculation[]

The chart marker position is calculated using aforementioned chunk and object x and y chart influence values[1]. Each location's chunk and object has their own raw chart influence values[2][3], which are put in following math formulas for the calculation process. Both types of influence are counted sequentially through these steps:

Additional Value Table:

Influence X/Y values Additional value
-9~-6 -2
-5~-3 -1
-2~2 +0
3~5 +1
6~9 +2

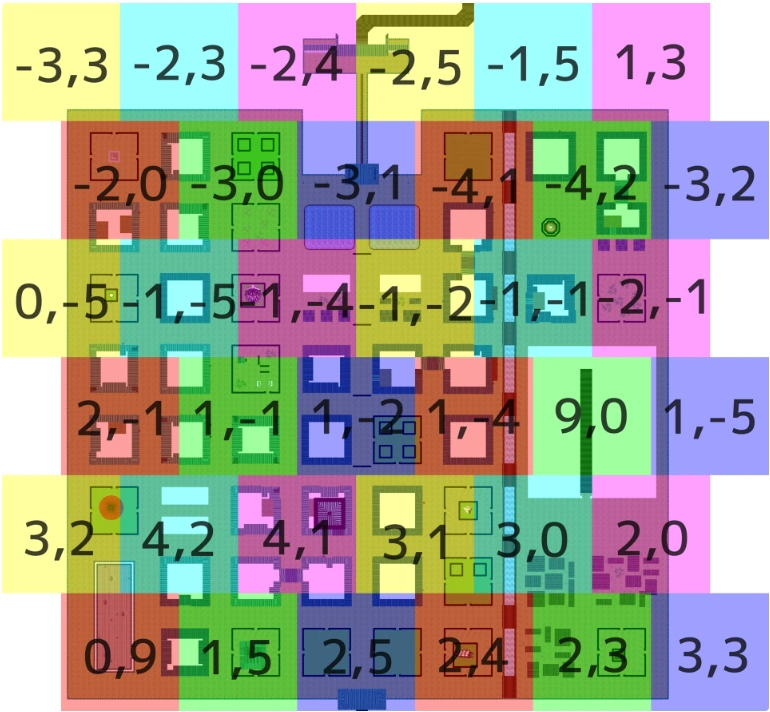

Kyoto chunkmap by Higashi

Kyoto chunkmap with raw influence labeled by Higashi

Chunk influence:[]

Here, (N+1) is the aforementioned divisor, derived from the number of chunks triggered in total. The values received from ChunkrawXY are always rounded down (fractional part is omitted). AdditionalValueXY is derived from the chunk's own raw chart influence values, the corresonding additional values are demonstrated in the table above.

Object influence:[]

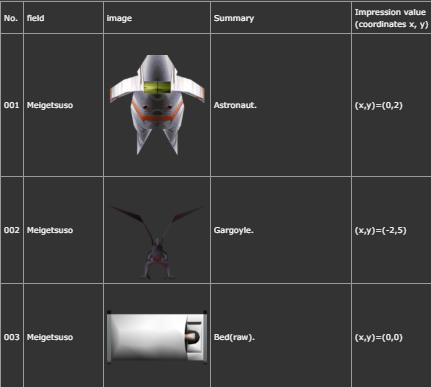

Object influence table by Higashi

Example of different object chart influence values. Table by Higashi.

Here, (N+1) means total objects / triggers activated. The values received from ObjrawXY are also always rounded down (fractional part is omitted). AdditionalValueXY is derived from the object's own raw chart influence values.

Current chart:[]

The final marker position is derived from total chart chunk influence and chart object influence combined and divided by 2:

In-depth examples of in-game chart's marker position calculation process is described on the Chart page.

Future memory analysis[]

Textures[]

The texture filenames are stored as text strings. There seems to be pointers to them. They might explain how textures are swapped. Another possibility is that the text strings are only stored by the emulator software.

Music[]

There are many different level-specific music tracks to distinguish from one another. The track number and theme maybe identified by comparing the in-game level music with extracted music tracks. Each level and theme identifies a track. The tracks can be identified using combinations such as AMBIENT_STG00_BGA.

Chart Mechanics[]

The graph changes when the user starts any in-game day and then enters different chunks of the map and observes, activates or interracts with different objects. The calculations described before place the marker on the background chart, which is responsible for link colors and activations of different rare events during the gameplay.

Objects[]

Objects such as Gray Man are dynamically allocated, which makes it difficult to find them. Using saved states, one might go back and forth within the same dream while the object remains at the same place in memory. It is not known how objects are pointed to (pointers) in the memory. The Greyman object, for example, contains its position and flags to make him fly forward or disable the linking.
